Contract fabrication · Slovakia
Large welded steel structures, built to your drawing.
Machine frames, conveyor structures, platforms, tanks and enclosures. One hall in Bánovce nad Bebravou cuts, bends, welds, machines and paints them under an EN ISO 3834-2 welding system, execution class EXC2 to EN 1090-2.
191 published structures in the gallery
- Welding quality system
- EN ISO 3834-2
- Execution class
- EXC2 · EN 1090-2
- Laser cutting
- 20 mm · 2 x 4 m
- Press brake
- 400 t · 6 050 mm
From the gallery
191 welded structures, built or quoted here
The 50 pieces below are the first of 191. Each is a real structure that came through this company as a built job, a quoted enquiry or a design from our own office, rendered from its own geometry. Every tile opens that model. The names are generic on purpose: this site publishes no customer, no machine designation and no drawing number.
Each group page sorts its models by type, with the measured overall size and a description beside every one.
What we build
Six groups, one hall
Each group is a kind of weldment, not a product line. Every picture below is a real structure, built or quoted here, rendered from its own geometry in raw steel.
01

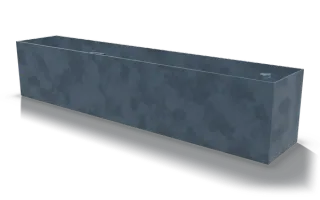

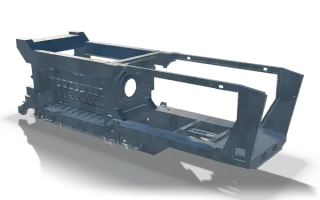

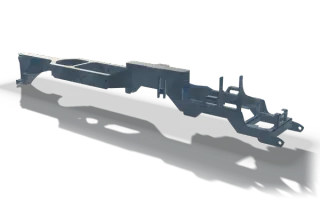

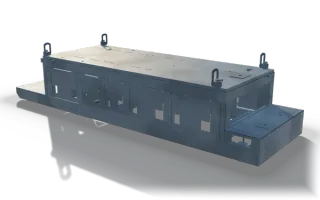

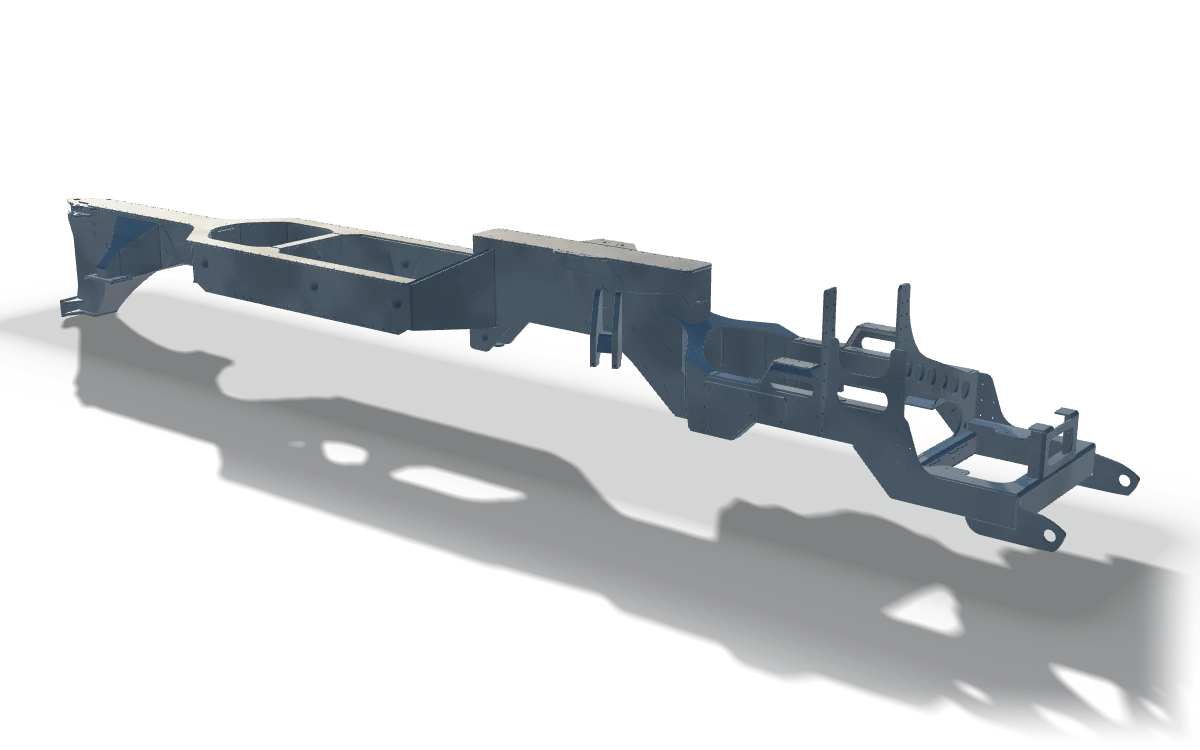

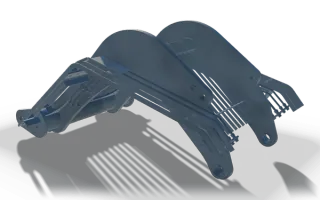

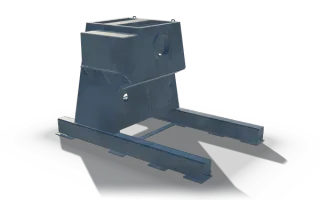

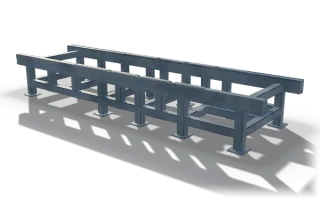

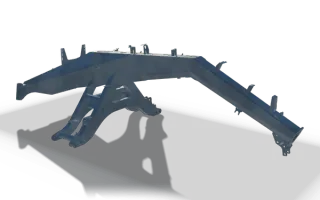

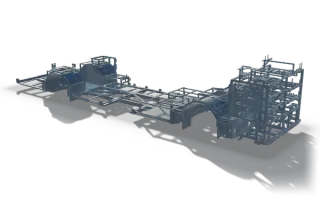

Machine frames and weldments
The welded base of a machine: the frame that carries the drive, the bed, the crusher, the press or the screen. Plate and rolled section welded into a stiff box or ladder, then machined so the mounting faces are flat and the bores are true.
- Maximum plate thickness, laser
- 20 mm
- Weld quality level (EN ISO 5817)
- level C at EXC2
- Horizontal boring mill travel X, Y, Z
- 6 200 x 3 000 x 1 600 mm
Pieces shown in this group run 1.5 to 13.6 m long
Open Machine frames and weldments
02

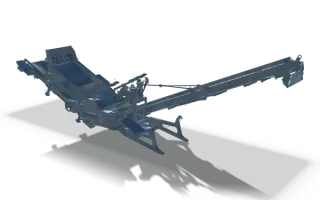

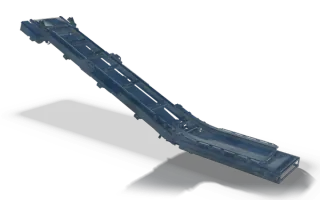

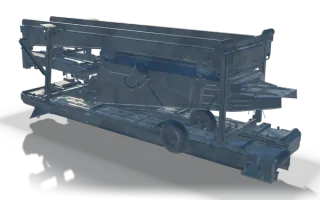

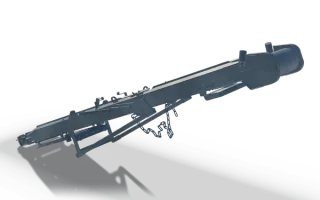

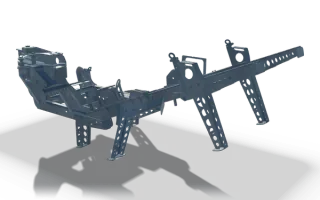

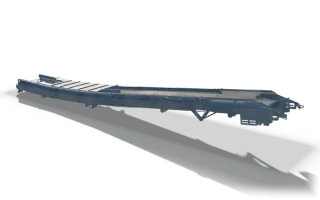

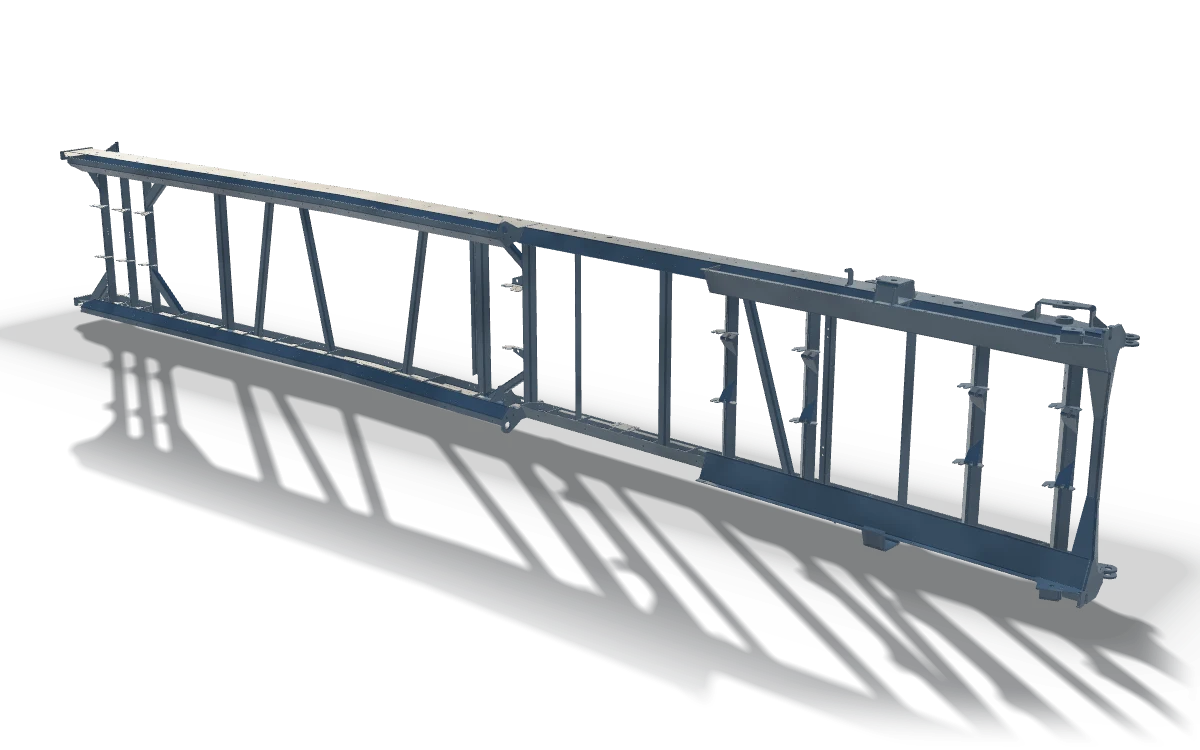

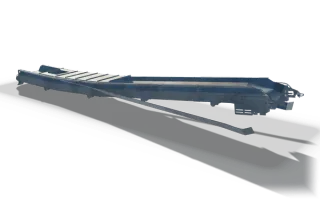

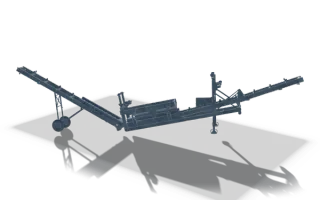

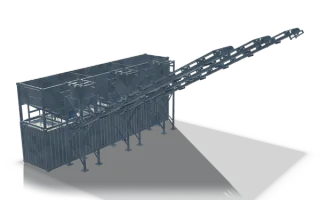

Conveyor and handling structures
The steel a conveyor runs on: truss or channel stringers, drive-end and tail-end frames, leg supports, cross bracing, transfer chutes and the walkway brackets beside the belt. Welded material conveyors are a named product type on our EN ISO 3834-2 certificate.
- Press brake table length
- 6 050 mm
- Weld quality level (EN ISO 5817)
- level C at EXC2
- Robotic welding track
- 14 m
Pieces shown in this group run 1.5 to 14.6 m long
Open Conveyor and handling structures
03

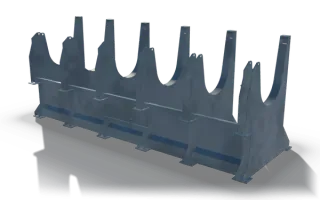

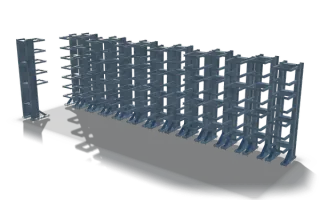

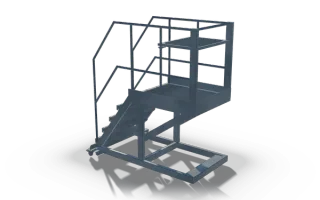

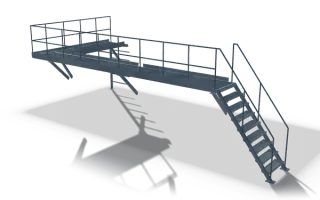

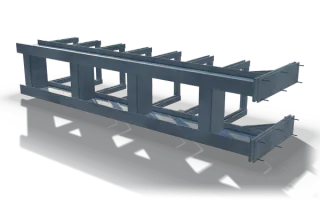

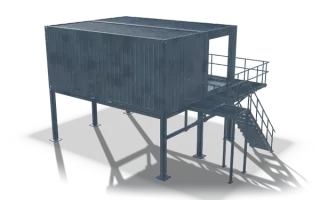

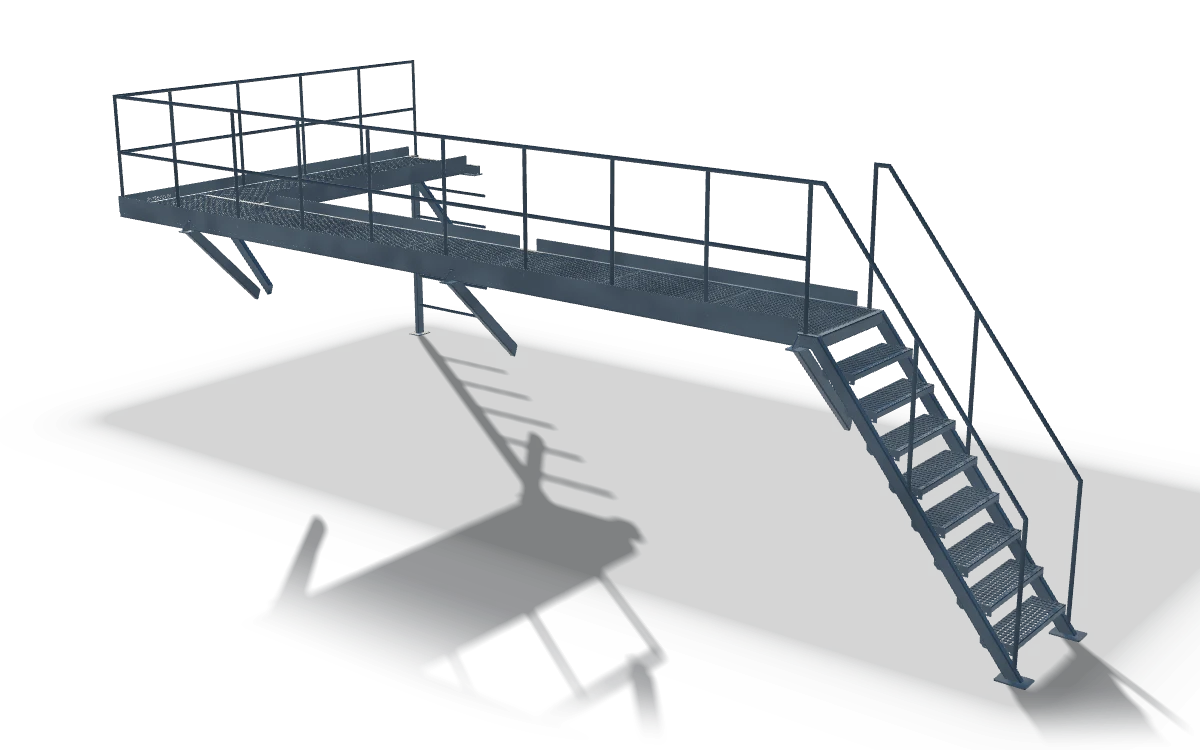

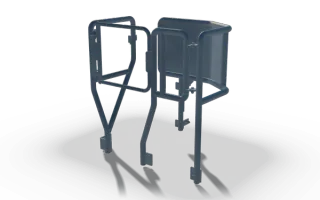

Platforms and access steel
The steel people stand on around a machine: maintenance platforms, walkways along conveyors, stair flights, ladders, handrails and kick plates. Built to the customer's drawing to EN 1090-2, execution class EXC2, from section and plate with grating or chequer plate decks.
- Laser bed
- 2 000 x 4 000 mm
- Weld quality level (EN ISO 5817)
- level C at EXC2
- Blasting chamber
- 8 000 x 5 000 x 3 000 mm
Pieces shown in this group run 1 to 18.9 m long
Open Platforms and access steel
04

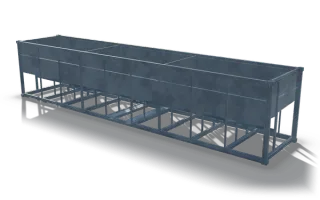

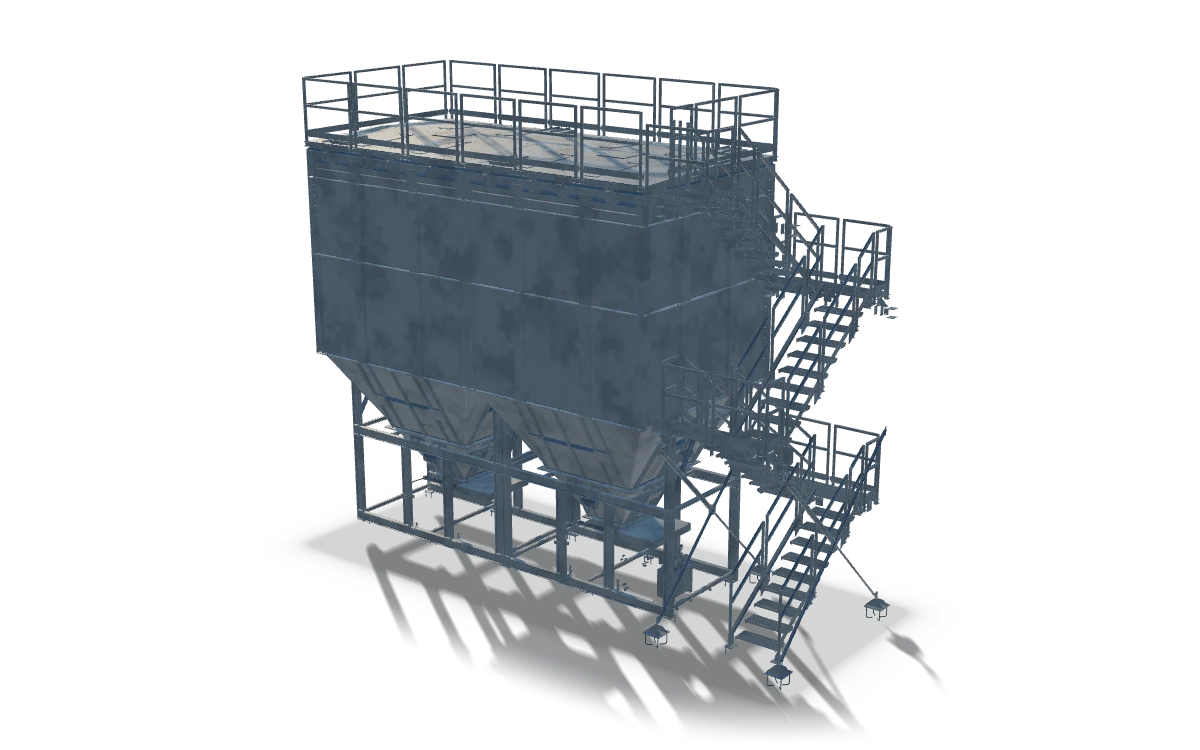

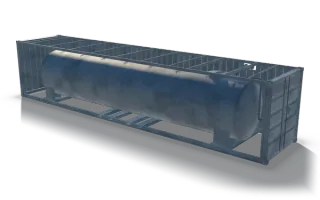

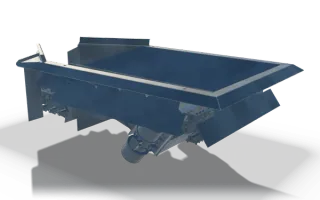

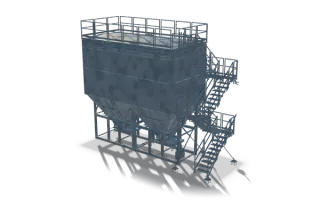

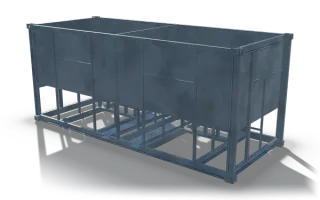

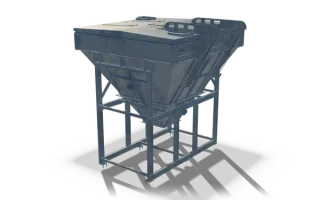

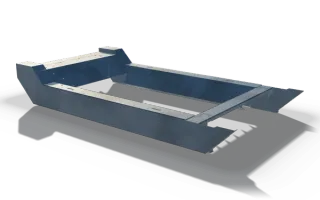

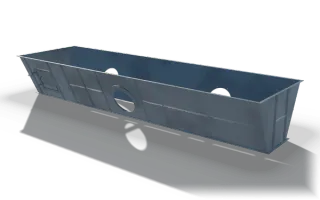

Tanks, hoppers and silos
Welded atmospheric tanks and the bodies that hold bulk material: feed hoppers, bunkers, silo shells, chutes and skirts. Named on our EN ISO 3834-2 certificate as a product type, with EN 14015, EN 12285-2 and API 650 in the certified product-standard scope.
- Maximum plate thickness, laser
- 20 mm
- Weld quality level (EN ISO 5817)
- level C at EXC2
- Press brake force
- 400 t
Pieces shown in this group run 1.4 to 12.2 m long
Open Tanks, hoppers and silos
05

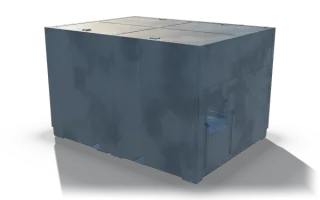

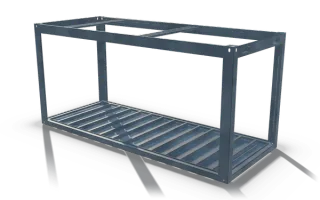

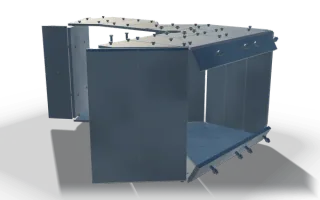

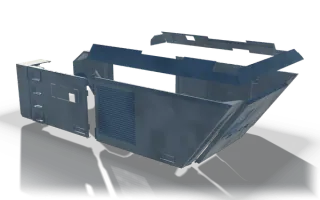

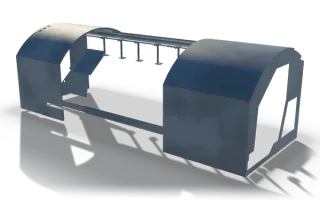

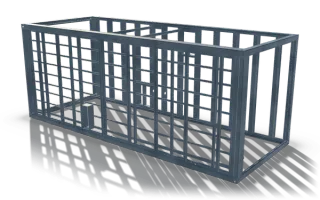

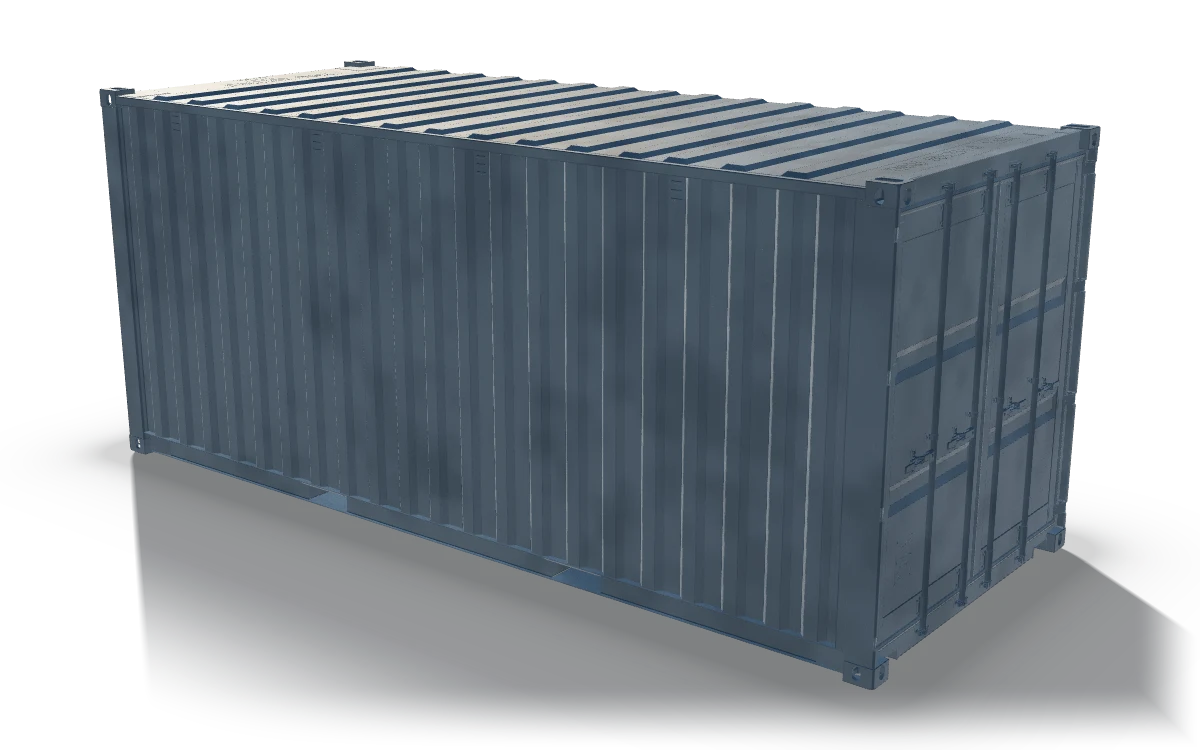

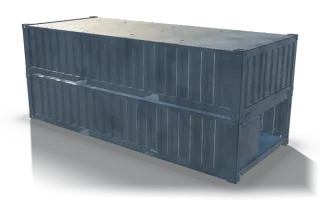

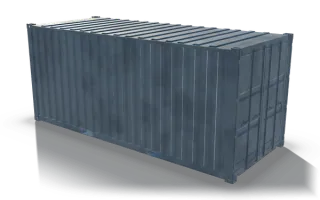

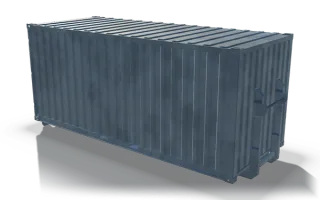

Enclosures and housings
The sheet-metal skin around a machine: housings, guards, cabinet frames, covers and technical enclosures. Laser-cut, folded on the press brake and welded, with hinges, seals and fixings fitted where the drawing asks for them.
- Press brake table length
- 6 050 mm
- Weld quality level (EN ISO 5817)
- level C at EXC2
- Spray and curing booth
- 7 900 x 5 000 x 4 890 mm
Pieces shown in this group run 1 to 12.2 m long
Open Enclosures and housings
06

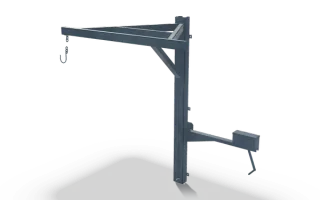

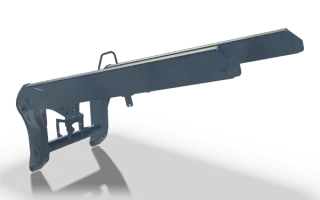

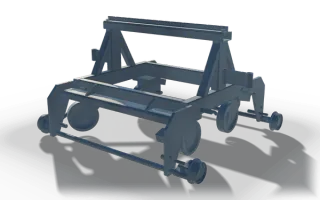

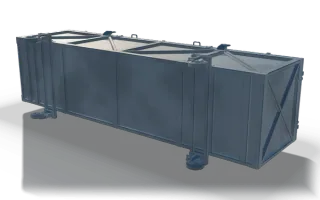

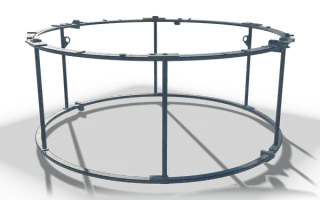

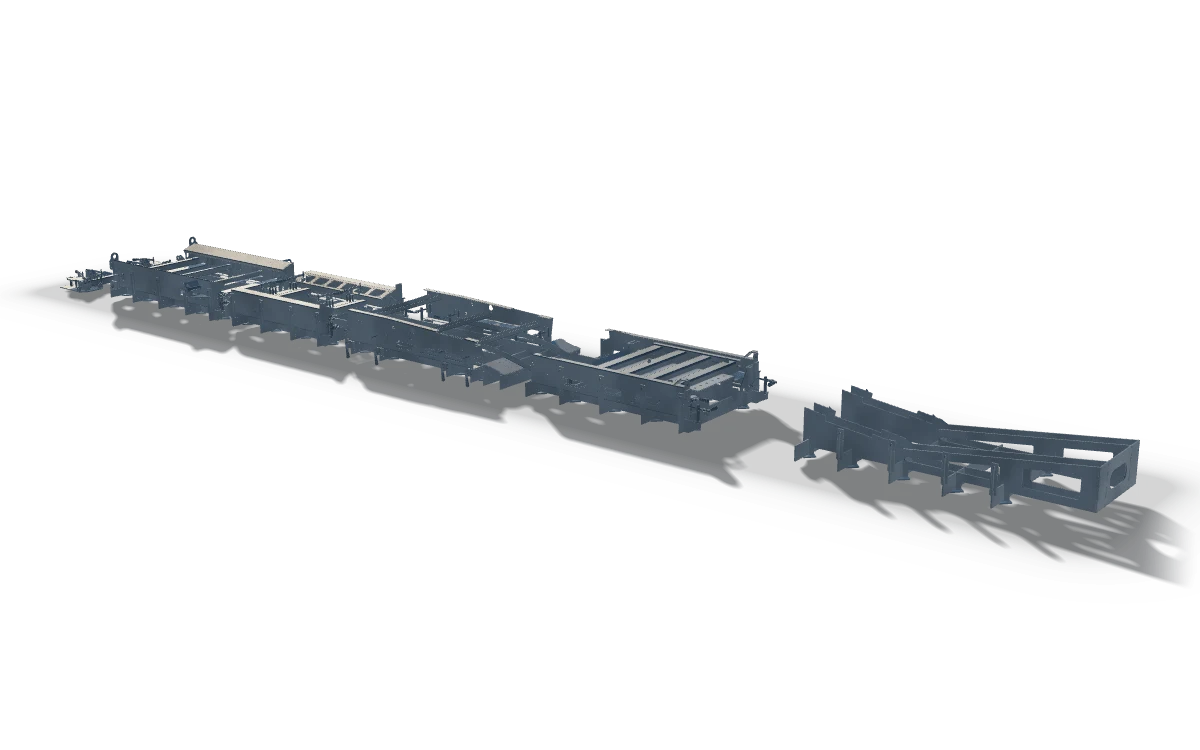

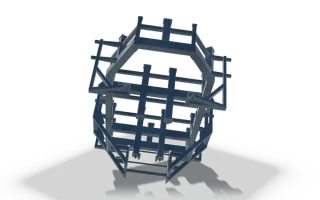

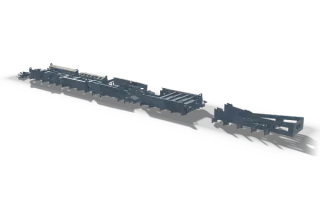

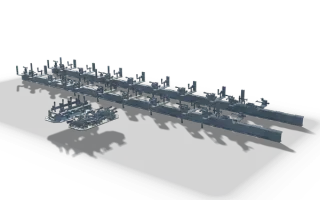

Built to your drawing
Anything the other five groups do not describe. Welded products based on the supplied documentation is a product type on our EN ISO 3834-2 certificate, and it is how most first orders start: one drawing, one piece, then a series.
- Structural steel, certified thickness (ISO/TR 15608 group 1)
- up to 40 mm
- Weld quality level (EN ISO 5817)
- level C at EXC2
- Horizontal mill travel X, Y, Z
- 8 000 x 3 000 x 1 500 mm
Pieces shown in this group run 1.2 to 13.6 m long
Open Built to your drawing
The manufacturer
What we build, we build in our own hall
TANAX TRUCKS a. s. fabricates in its own plant in Bánovce nad Bebravou, on the machines the capability pages list. We are the manufacturer. Not a broker, not a trading company, and not an agent for somebody else's workshop.
- One company, one hall: cutting, forming, welding, machining, blasting and painting all happen under this roof, and none of them is handed to a middleman.
- We build to your drawing. The design stays yours: we do not originate it, we do not calculate it, and we never claim it as ours.
- Certified where it counts: EN ISO 3834-2 for welding, ISO 9001 and ISO 14001 for the plant, with every certificate number printed on the quality pages.
One hall, three names
Why it matters to you
Everything on this site is made by TANAX TRUCKS a. s. in Bánovce nad Bebravou. The brands beside it sell different work out of the same building, under the same welding coordinator and the same certificates.
- TANAX STRUCTURESWelded steel structures to your drawingThis site. One thing is sold here: large welded steel structures made to the customer's drawing, from a machine frame to a conveyor truss to a hopper. There is no catalogue and no standard product. The drawing is the specification, and the quotation answers it.What we build
Same welders, same welding coordinator, same blasting booth and paint line. A drawing sent to any of the three reaches the same shop floor, and the quality system it is welded under does not change with the name on the enquiry.
One hall, three namesCapacity envelope
Can we make it? Ten seconds.
The figures our machines publish. Everything here is on the machine plate, not a sales estimate.
| Item | Machine | Figure |
|---|---|---|
| Laser bed | TRUMPF TruLaser 3040 | 2 000 x 4 000 mm |
| Maximum plate thickness, laser | TRUMPF TruLaser 3040 | 20 mm |
| Press brake table length | DURMA AD-S 60400 | 6 050 mm |
| Press brake force | DURMA AD-S 60400 | 400 t |
| Robotic welding track | Dual robotic welding station, Daihen FD-B6L | 14 m |
| Structural steel, certified thickness (ISO/TR 15608 group 1) | EN ISO 3834-2 scope | up to 40 mm |
| Horizontal boring mill travel X, Y, Z | TOS Varnsdorf WRD15 | 6 200 x 3 000 x 1 600 mm |
| Spray and curing booth | Polin AC spray and curing booth | 7 900 x 5 000 x 4 890 mm |
Crane capacity, maximum weldment mass and transport limits are not published and are confirmed per enquiry.
The route through the hall
Drawing in. Structure out.
- 01
Drawing review
Your STEP, DWG, DXF or PDF, checked for weldability, tolerances and finish before a price is written.
- 02
Cutting and forming
Plate laser-cut to 20 mm on a 2 x 4 m bed, folded on a 400 t, 6 050 mm press brake.
- 03
Welding
MAG 135, manual and robotic, to a written WPS under an IWE welding coordinator. Weld quality to EN ISO 5817.
- 04
Machining
Mounting faces, bores and bearing seats machined after welding on horizontal boring mills with travels to 8 000 mm.
- 05
Surface
Blasted in an 8 x 5 x 3 m chamber, wet-painted and cured in the connected booth. Galvanising on request.
- 06
Inspection and documents
Visual weld inspection, dimensional check with a FARO measuring arm, and the documentation the order calls for.
Certified
What the welds are made under
Three certificates from PQM, s.r.o. cover the welding system and the management systems around it. The numbers and the transcribed scope are on the certificates page, together with what is deliberately not printed.
EN ISO 3834-2:2006
W348721
PQM, s.r.o., Banská Bystrica
ISO 9001:2015
Q648721
PQM, s.r.o., Banská Bystrica
ISO 14001:2015
E348721
PQM, s.r.o., Banská Bystrica
Start here
Send the drawing. We answer with a price and a date.
STEP, DWG, DXF, PDF or ZIP, up to five files. Your drawings stay private: they are stored outside the web server and read only by our engineers.
